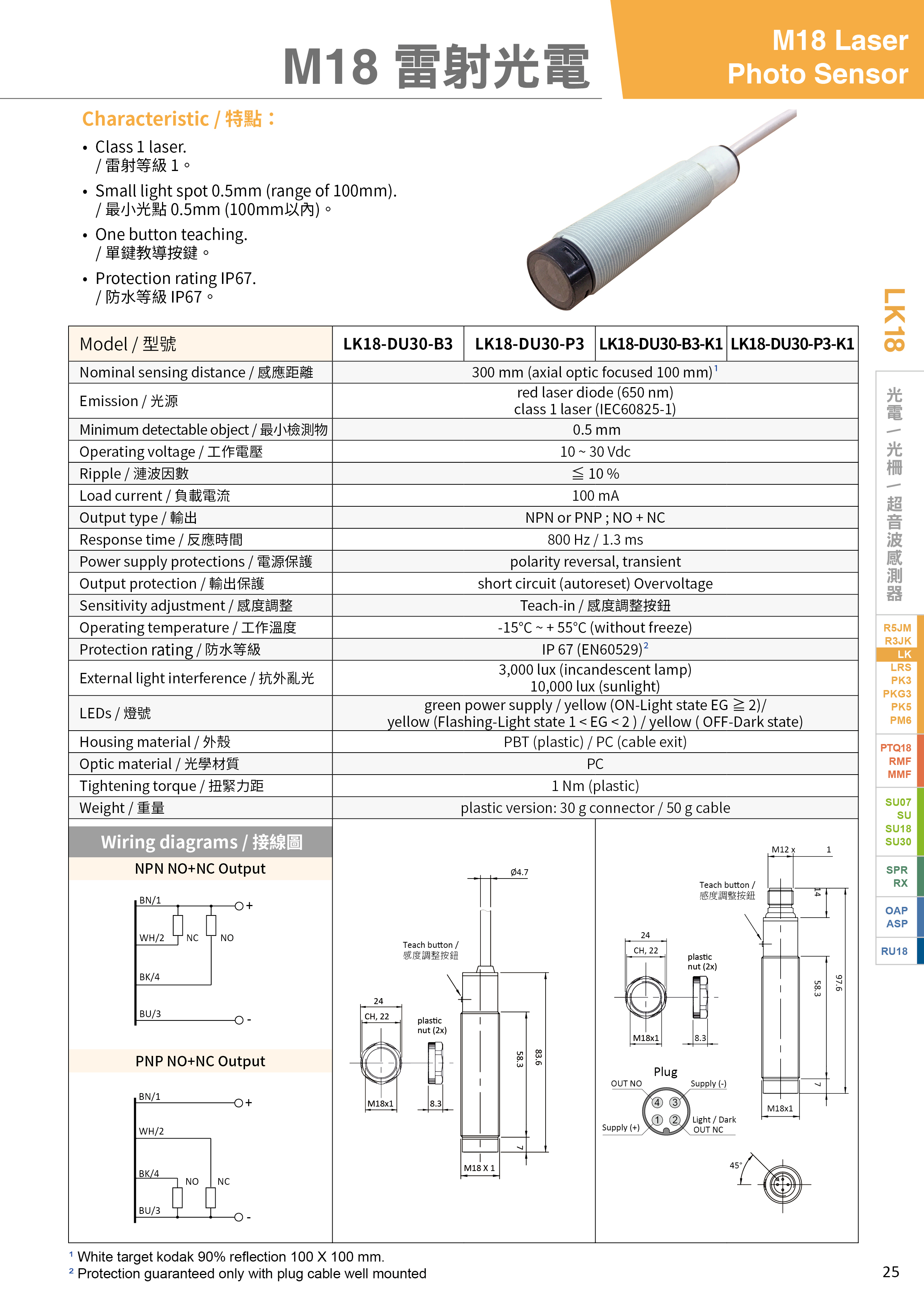

| NPN NO + NC | LK18-DU30-B3 / LK18-DU30-B3-K1 |
| PNP NO + NC | LK18-DU30-P3 / LK18-DU30-P3-K1 |
| 检出方式 | 300 mm (axial optic focused 100 mm) |
| 光源 |
red laser diode (650 nm) class 1 laser (IEC60825-1) |
| 最小检测物 | 0.5 mm |
| 工作电压 | 12 ~ 30 VDC |
| 涟波因数 | ≦ 10 % |
| 负载电流 | 100mA Max. at DC24V |
| 反应时间 | 800 Hz / 1.3 ms |
| 电源保护 | polarity reversal, transient |
| 输出保护 | short circuit (autoreset) Overvoltage |
| 感度調整 | 感度调整按钮 |
| 工作温度 | -15℃ ~ + 55℃ (without freeze) |
| 抗外乱光 |
3,000 lux (incandescent lamp) 10,000 lux (sunlight) |
| 防水等级 | IP67 |
| 灯号 |
green power supply / yellow (ON-Light state EG ≧ 2)/ yellow (Flashing-Light state 1 < EG < 2 ) / yellow ( OFF-Dark state) |
| 外壳 | PBT (plastic) / PC (cable exit) |
| 光学材质 | PC |
| 扭緊力距 | 1 Nm (plastic) |
